Product Features

• Equipped with active PFC, the power factor can reach up to 0.99.

• The speed of the rising and falling edges of the output is adjustable.

• Wide range output capability, expanding the output range to three times that of the same power level "matrix" power supply.

• Adopting high-frequency LLC multi resonant inverter, the overall efficiency of the machine is as high as 93%.

• The master-slave mode supports parallel connection and active current sharing, and can connect up to 10 products of the same model in parallel.

• Supports OVP, OCP, OPP, OTP protection, and SENSE terminalsReverse protection.

• Equipped with lead voltage drop compensation terminals, it can achieve output lead voltage drop compensation during high current operation.

• Built in function generator.

• Equipped with a discharge circuit (Uout<10V within 1 second).

• Built in multiple interfaces, including RS232/RS485/CAN/GPIB/USB/LAN communication interfaces.

• Built in remote simulation control interface.

•  Supports SCPI instruction language.

• High brightness color LCD display screen, exquisite appearance, simple operation, and intuitive.

• Built in voltage reverse protection module, suitable for various inductive loads such as transformers and motors (optional)

outline

The BSC66000 series is a programmable laboratory constant power DC power supply controlled by a microprocessor, with exquisite appearance, small size, high performance, powerful functions, and simple operation. Based on the concept of user-friendly interactive operation, it has excellent output performance indicators.

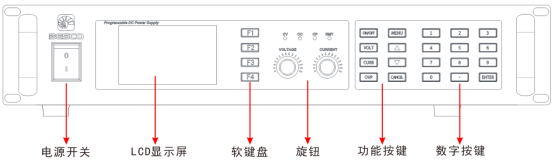

Convenient panel operation

This series of products adopts a 2U standard chassis, which is suitable for workbench operation and convenient to be built into industrial standard cabinets. It is equipped with a high brightness 4.0-inch color LCD display screen, comfortable silicone buttons, easy to operate knobs, and 4 intuitive LED status indicator lights.

Wide range output

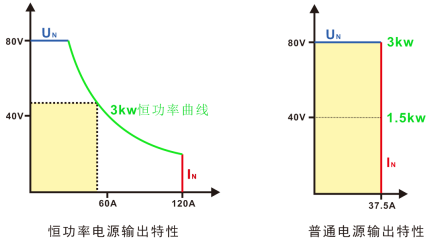

Constant power supply has a wider output voltage and current range compared to ordinary power supply, and a single model power supply can meet the testing needs of customers for various specifications of products. The voltage and current output of the power supply are limited by the maximum power, and reducing the output current can obtain higher voltage or larger output current, making it more flexible than traditional "matrix" power supplies. As shown in the following figure:

Function generator

All models in this series have a real function generator that can form the following typical functions and can be applied to output voltage or output current. The generator can be set through the front panel or remotely configured through a certain digital interface. The preset function will provide users with all necessary parameters, such as Y deviation value, time, frequency or amplitude, and a complete set of configuration parameters.
